Guia para Fortinet NSE 7 - LAN Edge 7.0

Quiz Fortinet NSE 7 - LAN Edge 7.0

Teste gratuito
/ 10

Questionário

1/10
Refer to the exhibits


Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 2-548841547

























































The exhibits show the wireless network (VAP) SSID profiles defined on FortiManager and an AP
profile assigned to a group of APs that are supported by FortiGate
None of the APs are broadcasting the SSlDs defined by the AP profile
Which changes do you need to make to enable the SSIDs to broadcast?
Selecione a resposta
1 resposta correta
A.
In the SSIDs section enable Tunnel
B.
Enable one channel in the Channels section
C.
Enable multiple channels in the Channels section and enable Radio Resource Provision
D.
In the SSIDs section enable Manual and assign the networks manually

Questionário

2/10
Which two statements about the guest portal on FortiAuthenticator are true? (Choose two.)
Selecione a resposta
2 respostas corretas
A.
Each remote user on FortiAuthenticator can sponsor up to 10 guest accounts
B.
Administrators must approve all guest accounts before they can be used
C.
The guest portal provides pre and post-log in services
D.
Administrators can use one or more incoming parameters to configure a mapping rule for the
guest portal

Questionário

3/10

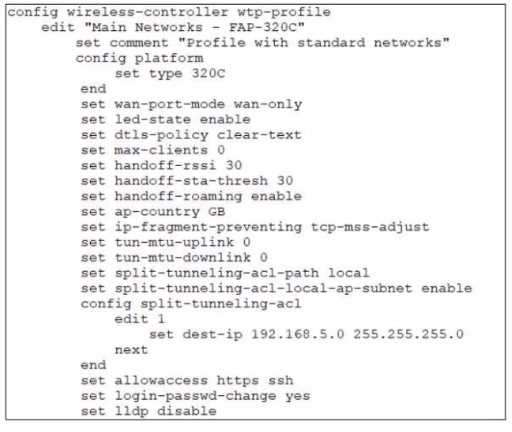

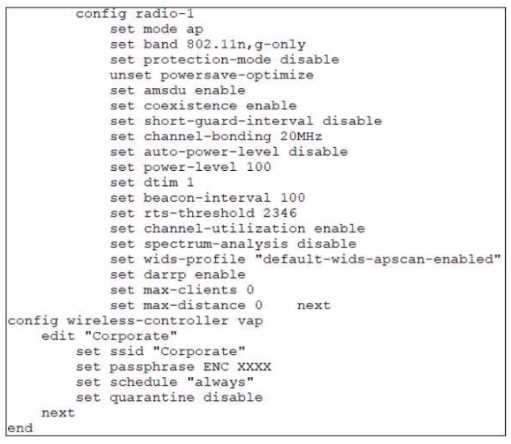

Refer to the exhibit.



Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 3-3525946301



Exhibit.



Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 4-1603786461



Refer to the exhibits
In the wireless configuration shown in the exhibits, an AP is deployed in a remote site and has a
wireless network (VAP) called Corporate deployed to it
The network is a tunneled network however clients connecting to a wireless network require access
to a local printer Clients are trying to print to a printer on the remote site but are unable to do so
Which configuration change is required to allow clients connected to the Corporate SSID to print
locally?
Selecione a resposta
1 resposta correta
A.
Configure split-tunneling in the vap configuration
B.
Configure split-tunneling in the wtp-profile configuration
C.
Disable the Block Intra-SSID Traffic (intra-vap-privacy) setting on the SSID (VAP) profile
D.
Configure the printer as a wireless client on the Corporate wireless network

Questionário

4/10

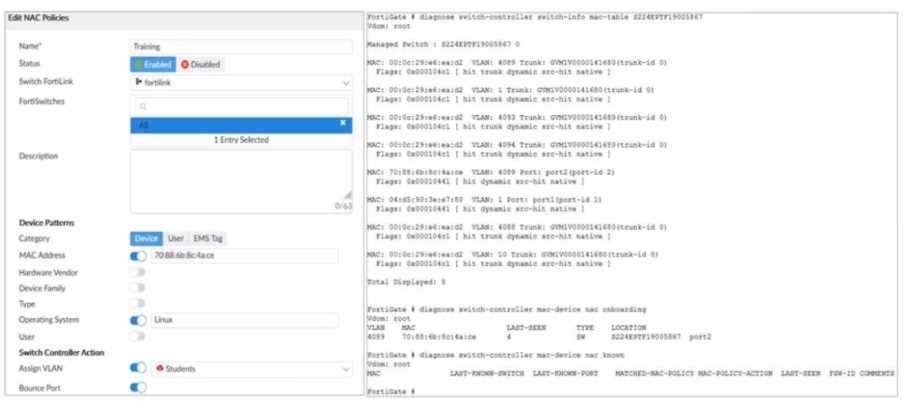

Refer to the exhibit.


Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 5-994975145



Examine the FortiManager configuration and FortiGate CLI output shown in the exhibit
An administrator is testing the NAC feature The test device is connected to a managed FortiSwitch
device {S224EPTF19"53€7)onpOrt2
After applying the NAC policy on port2 and generating traffic on the test device the test device is not
matching the NAC policy therefore the test device remains m the onboarding VLAN
Based on the information shown in the exhibit which two scenarios are likely to cause this issue?
(Choose two.)
Selecione a resposta
2 respostas corretas
A.
Management communication between FortiGate and FortiSwitch is down
B.
The MAC address configured on the NAC policy is incorrect
C.
The device operating system detected by FortiGate is not Linux
D.
Device detection is not enabled on VLAN 4089

Questionário

5/10

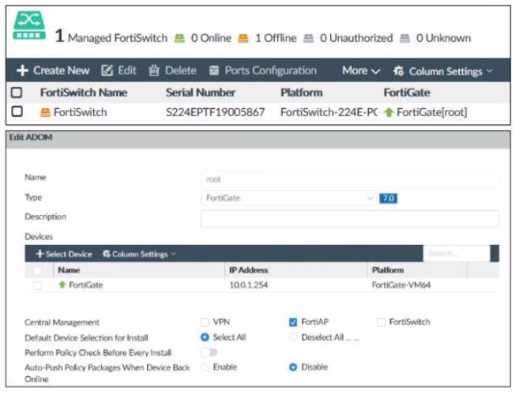

Refer to the exhibit.


Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 6-1868777622



Examine the FortiManager information shown in the exhibit
Which two statements about the FortiManager status are true'' (Choose two)
Selecione a resposta
2 respostas corretas
A.
FortiSwitch manager is working in per-device management mode
B.
FortiSwitch is not authorized
C.
FortiSwitch manager is working in central management mode
D.
FortiSwitch is authorized and offline

Questionário

6/10
An administrator has configured an SSID in bridge mode for corporate employees All APs are online
and provisioned using default AP profiles Employees are unable to locate the SSID to conned
Which two configurations can the administrator verify? (Choose two)
Selecione a resposta
2 respostas corretas
A.
Verify that the broadcast SSID option is enabled in the SSID configuration
B.
Verify that the Block Intra-SSID Traffic (intra-vap-privacy) option in the SSID configuration is
disabled
C.
Verify that the SSID to an AP group that should be broadcasting the SSID is applied
D.
Verify that the SSID is manually applied on AP profiles for both 2 4 GHz and 5 GHz radios

Questionário

7/10
What is the purpose of enabling Windows Active Directory Domain Authentication on
FortiAuthenticator?
Selecione a resposta
1 resposta correta
A.
It enables FortiAuthenticator to use Windows administrator credentials to perform an LDAP
lookup for a user search
B.
It enables FortiAuthenticator to use a Windows CA certificate when authenticating RADIUS users
C.
It enables FortiAuthenticator to import users from Windows AD
D.
It enables FortiAuthenticator to register itself as a Windows trusted device to proxy authentication
using Kerberos

Questionário

8/10

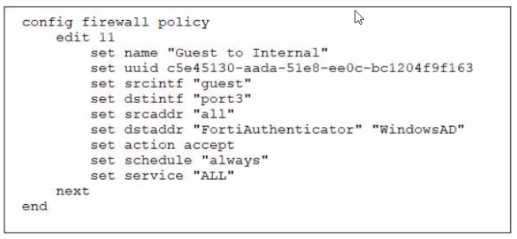

Refer to the exhibits.



Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 8-1757411412


Firewall Policy


Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 7-797302021



Examine the firewall policy configuration and SSID settings
An administrator has configured a guest wireless network on FortiGate using the external captive
portal The administrator has verified that the external captive portal URL is correct However wireless
users are not able to see the captive portal login page
Given the configuration shown in the exhibit and the SSID settings which configuration change
should the administrator make to fix the problem?
Selecione a resposta
1 resposta correta
A.
Disable the user group from the SSID configuration
B.
Enable the captivs-portal-exempt option in the firewall policy with the ID 11.
C.
Apply a guest.portal user group in the firewall policy with the ID 11.
D.
Include the wireless client subnet range in the Exempt Source section

Questionário

9/10

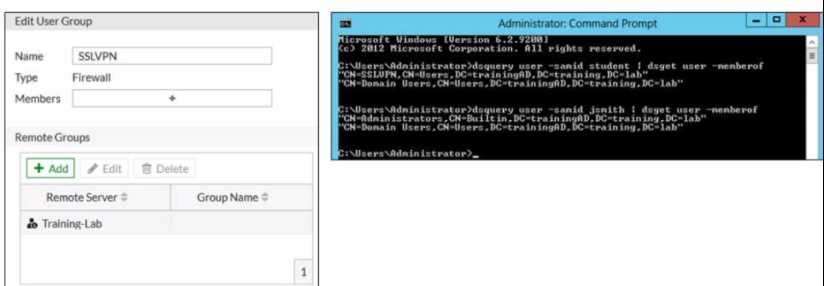

Refer to the exhibit.


Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 9-68186334



Examine the FortiGate user group configuration and the Windows AD LDAP group membership
information shown in the exhibit
FortiGate is configured to authenticate SSL VPN users against Windows AD using LDAP The
administrator configured the SSL VPN user group for SSL VPN users However the administrator
noticed that both the student and j smith users can connect to SSL VPN
Which change can the administrator make on FortiGate to restrict the SSL VPN service to the student
user only?
Selecione a resposta
1 resposta correta
A.
In the SSL VPN user group configuration set Group Nam© to CN-SSLVPN, CN="users, DC-
trainingAD, DC-training, DC-lab
B.
In the SSL VPN user group configuration, change Name to cn=sslvpn, CN=users, DC=trainingAD,
Detraining, DC-lab.
C.
In the SSL VPN user group configuration set Group Name to ::;=Domain users.CN-
Users/DC=trainingAD, DC-training, DC=lab.
D.
In the SSL VPN user group configuration change Type to Fortinet Single Sign-On (FSSO)

Questionário

10/10

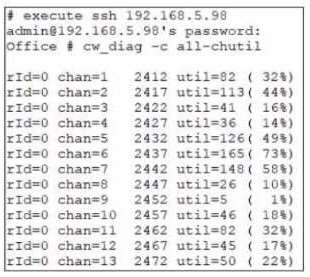

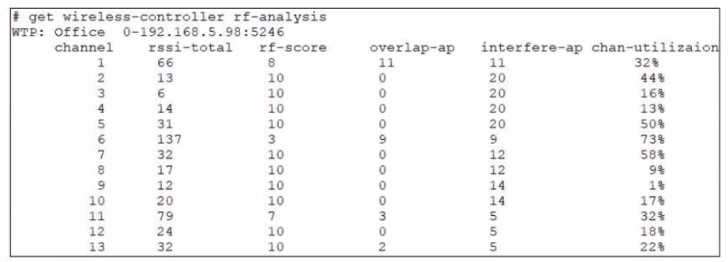

Refer to the exhibits.


Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 10-4103065949



Exhibit.



Certification Exam Fortinet NSE 7 - LAN Edge 7.0 Fortinet Fortinet-NSE7_LED-7.0 11-3534910470



Examine the troubleshooting outputs shown in the exhibits
Users have been reporting issues with the speed of their wireless connection in a particular part of
the wireless network The interface that is having issues is the 2 4 GHz interface that is currently
configured on channel 6
The administrator of the wireless network has investigated and surveyed the local RF environment
using the tools available at the AP and FortiGate
Which configuration would improve the wireless connection?
Selecione a resposta
1 resposta correta
A.
Change the AP 2 4 GHz channel to 11
B.
Change the AP 2 4 GHz channel to 1.
C.
Change the AP 2 4 GHz channel to 9.
D.
Change the AP 2 4 GHz channel to 13.
