Guide for Fortinet NSE 7 - SD-WAN 7.0

Quiz Fortinet NSE 7 - SD-WAN 7.0

Free Test
/ 10

Quiz

1/10

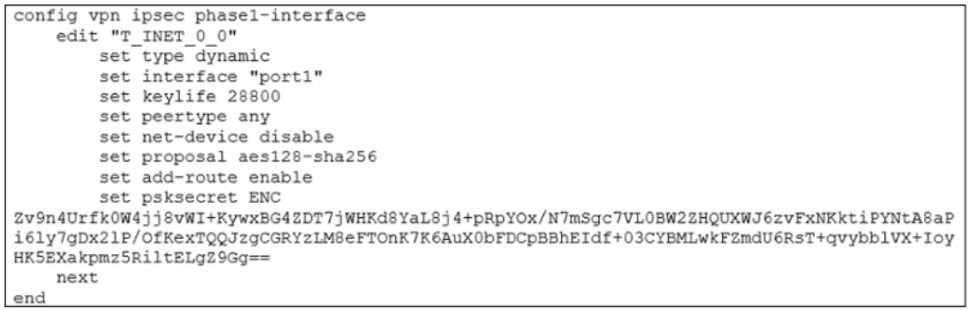

Refer to the exhibit. Certification Exam Fortinet NSE 7 - SD-WAN 7.0 Fortinet Fortinet-NSE7_SDW-7.0 6-2747048956 Which configuration change is required if the responder FortiGate uses a dynamic routing protocol to exchange routes over IPsec?
Select the answer
1 correct answer
A.
type must be set to static.
B.
mode-cfg must be enabled.
C.
exchange-interface-ip must be enabled.
D.
add-route must be disabled.

Quiz

2/10
Which diagnostic command can you use to show the member utilization statistics measured by performance SLAs for the last 10 minutes?
Select the answer
1 correct answer
A.
diagnose sys sdwan intf-sla-log
B.
diagnose sys sdwan health-check
C.
diagnose sys sdwan log
D.
diagnose sys sdwan sla-log

Quiz

3/10
Which two protocols in the IPsec suite are most used for authentication and encryption? (Choose two.)
Select the answer
2 correct answers
A.
Encapsulating Security Payload (ESP)
B.
Secure Shell (SSH)
C.
Internet Key Exchange (IKE)
D.
Security Association (SA)

Quiz

4/10
Which two settings can you configure to speed up routing convergence in BGP? (Choose two.)
Select the answer
2 correct answers
A.
update-source
B.
set-route-tag
C.
holdtime-timer
D.
link-down-failover Certification Exam Fortinet NSE 7 - SD-WAN 7.0 Fortinet Fortinet-NSE7_SDW-7.0 2-815307979

Quiz

5/10

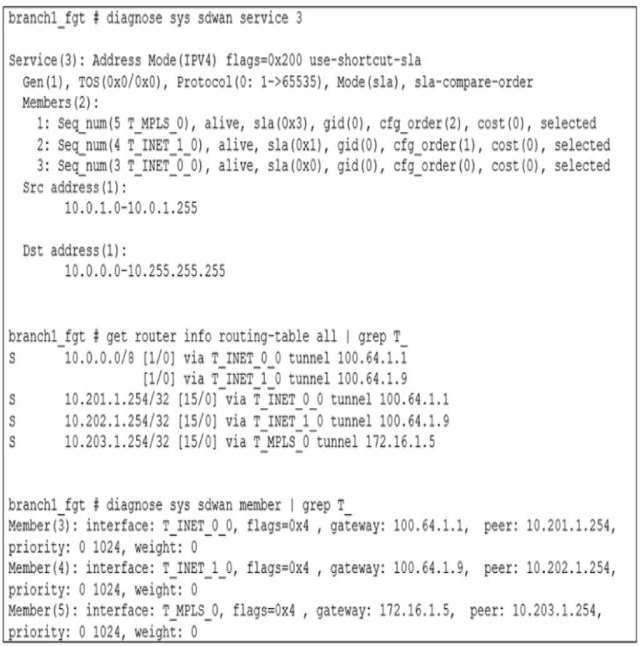

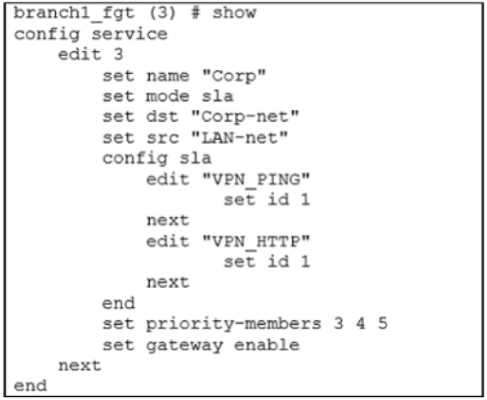

Refer to the exhibits. Exhibit A Exhibit B - Certification Exam Fortinet NSE 7 - SD-WAN 7.0 Fortinet Fortinet-NSE7_SDW-7.0 3-3324355173 Exhibit A shows the configuration for an SD-WAN rule and exhibit B shows the respective rule status, the routing table, and the member status. The administrator wants to understand the expected behavior for traffic matching the SD-WAN rule. Based on the exhibits, what can the administrator expect for traffic matching the SD-WAN rule?
Select the answer
1 correct answer
A.
The traffic will be load balanced across all three overlays.
B.
The traffic will be routed over T_INET_0_0.
C.
The traffic will be routed over T_MPLS_0.
D.
The traffic will be routed over T_INET_1_0.

Quiz

6/10

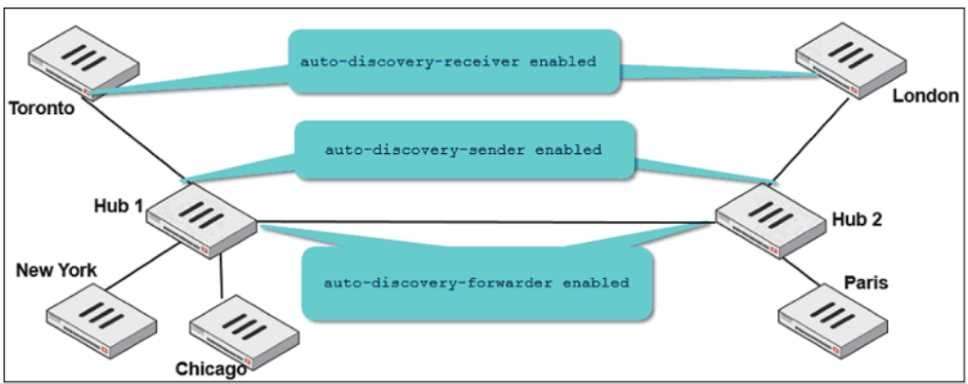

Refer to the exhibit. Certification Exam Fortinet NSE 7 - SD-WAN 7.0 Fortinet Fortinet-NSE7_SDW-7.0 4-425704078 Two hub-and-spoke groups are connected through a site-to-site IPsec VPN between Hub 1 and Hub 2. The administrator configured ADVPN on both hub-and-spoke groups. Which two outcomes are expected if a user in Toronto sends traffic to London? (Choose two.)
Select the answer
2 correct answers
A.
London generates an IKE information message that contains the Toronto public IP address.
B.
Traffic from Toronto to London triggers the dynamic negotiation of a direct site-to-site VPN.
C.
Toronto needs to establish a site-to-site tunnel with Hub 2 to bypass Hub 1.
D.
The first packets from Toronto to London are routed through Hub 1 then to Hub 2.

Quiz

7/10
Which two performance SLA protocols enable you to verify that the server response contains a specific value? (Choose two.)
Select the answer
2 correct answers
A.
http
B.
icmp
C.
twamp
D.
dns

Quiz

8/10
Refer to the exhibit. Certification Exam Fortinet NSE 7 - SD-WAN 7.0 Fortinet Fortinet-NSE7_SDW-7.0 5-2709921863 Which two conclusions for traffic that matches the traffic shaper are true? (Choose two.)
Select the answer
2 correct answers
A.
The traffic shaper drops packets if the bandwidth is less than 2500 KBps.
B.
The measured bandwidth is less than 100 KBps.
C.
The traffic shaper drops packets if the bandwidth exceeds 6250 KBps.
D.
The traffic shaper limits the bandwidth of each source IP to a maximum of 6250 KBps.

Quiz

9/10
Which CLI command do you use to perform real-time troubleshooting for ADVPN negotiation?
Select the answer
1 correct answer
A.
get router info routing-table all
B.
diagnose debug application ike
C.
diagnose vpn tunnel list
D.
get ipsec tunnel list

Quiz

10/10

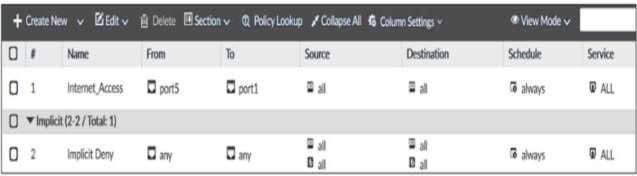

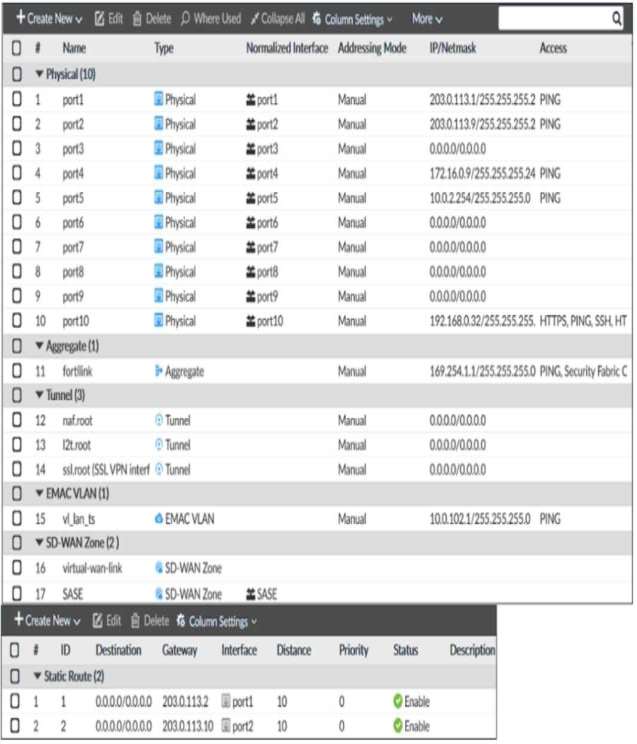

Refer to the exhibit. Certification Exam Fortinet NSE 7 - SD-WAN 7.0 Fortinet Fortinet-NSE7_SDW-7.0 7-1110336378 Exhibit B – Certification Exam Fortinet NSE 7 - SD-WAN 7.0 Fortinet Fortinet-NSE7_SDW-7.0 8-2250547742 Exhibit A shows the system interface with the static routes and exhibit B shows the firewall policies on the managed FortiGate. Based on the FortiGate configuration shown in the exhibits, what issue might you encounter when creating an SD-WAN zone for port1 and port2?
Select the answer
1 correct answer
A.
port1 is assigned a manual IP address.
B.
port1 is referenced in a firewall policy.
C.
port2 is referenced in a static route.
D.
port1 and port2 are not administratively down.
