Guide for Aruba Certified Design Expert Written Exam

Quiz Aruba Certified Design Expert Written Exam

Free Test
/ 10

Quiz

1/10
For which scenario do Aruba CX 6300M Series switches meet the needs for an upgrade of the wired
access layer while the Aruba CX 630QF Series switches do not?
Select the answer
1 correct answer
A.
The customer wants to utilize the Aruba AP-515 support for 002 3bz connectivity.
B.
The customer wants to utilize LACP on AP515 in VSF switch configuration.
C.
The Aruba CX6300M supports 10GBase-T connectivity with AP-515.
D.
The Aruba CX 630DM support up to 75W PoE+ per port

Quiz

2/10
What is one piece of additional information architects should obtain from the customer before they
design the wireless solution?
Select the answer
1 correct answer
A.
the power requirements for the wireless loT devices and security cameras
B.
the authentication and encryption capabilities for loT devices and security cameras
C.
the distance between the locations where cameras will be installed and the wiring closet on each
floor
D.
the average number of users per loT device

Quiz

3/10
The architect plans to recommend an upgrade to Aruba CX switches
What is one requirement for the new solution that justifies this recommendation?
Select the answer
1 correct answer
A.
the requirement to support secure IPsec tunneling at the aggregation layer
B.
the requirement to support larger ARP tables at the aggregation layer
C.
the requirement to support smart Rate at the access layer
D.
the requirement to support tunneled-node at the access layer

Quiz

4/10
An indoor sports stadium has 5.000 seats in two rings:
■ The stadium has a ceiling height of 72 feet (22 m).
■ There is a catwalk around the perimeter of me stadium that is 54 feet (13 m) from me floor.
■ There are two scoreboards at either end of the stadium
■ The construction of the stadium is concrete and steel.
The customer has indicated a preference for overhead coverage, and the wireless network should
support 3500 concurrent
clients. The architect plans to install the APs on the catwalk to service sections of the floor below
Which type or antennas are recommended for the APS that provide the overhead coverage?
Select the answer
1 correct answer
A.
downtilt
B.
high gain directional
C.
high gain omnidirectional
D.
vagi

Quiz

5/10

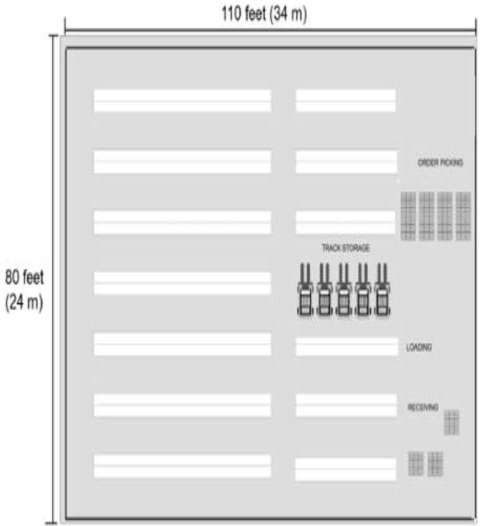

Refer to the exhibit.


Certification Exam Aruba Certified Design Expert Written Exam HP HP-HPE6-A80 2-2915207369



This warehouse has the dimensions shown in the exhibit. The warehouse is 20 feet (6 m) high up to a
steel railing on the
celling. The shelves are about 16 feet (5m) high, and they hold large containers filled with fluid and


2

metal equipment.
The customer needs consistent wireless coverage throughout the warehouse, mostly to support the
tablets that
employees use to run Inventory tracking and other applications. The warehouse staff works in shifts
of 20.
The architect has selected AP-515S. About how many APs should the architect propose?
Select the answer
1 correct answer
A.
about 13-16
B.
about 23-32
C.
about 6-8
D.
about 6-4

Quiz

6/10
A hospital wireless network must support many different types of users and devices, including:
• Visitors who access the Internet
• Admin staff, who run applications such as scheduling
• Medical staff, who look up patient info on their tablets
• Patient monitoring devices, which must not lose any traffic
• Communicator badges, which support real-time voice to allow nurses and doctors to communicate
The hospital needs to ensure that the most vital and time-sensitive traffic is prioritized and that
visitors do not interfere with
hospital applications. The MC should mark traffic that passes through it for an appropriate priority.
Which plan meets the needs? (The plans describe firewall roles and rules but do not need to use
correct syntax. Note that
security roles are also not included.)
Select the answer
1 correct answer
A.
Medical staff = Highest. Patient monitoring = Highest. Admin staff - High. Communicator = Normal.
Visitors = Low.
B.
Communicator = Highest. Patient monitoring = Highest. Medical staff = High. Admin staff =
Normal: Visitors = Low.
C.
Patient monitoring = Highest. Medical staff = Highest. communicators = High. Admin staff = High.
Visitors = Normal.
D.
Medical staff = Highest. Communicator = High. Patient monitoring = High. Admin = High. Visitors =
Normal

Quiz

7/10
A hospital needs a Getter way to track its inventory Including wireless medical devices that are
moved around the site a lot.
Which solution meets these needs?
Select the answer
1 correct answer
A.
Aruba asset tags and beacons
2
B.
Aruba beacons. APs. and AirWave
C.
Aruba beacons and Meridian
D.
Aruba asset tags, APs; and Meridian

Quiz

8/10

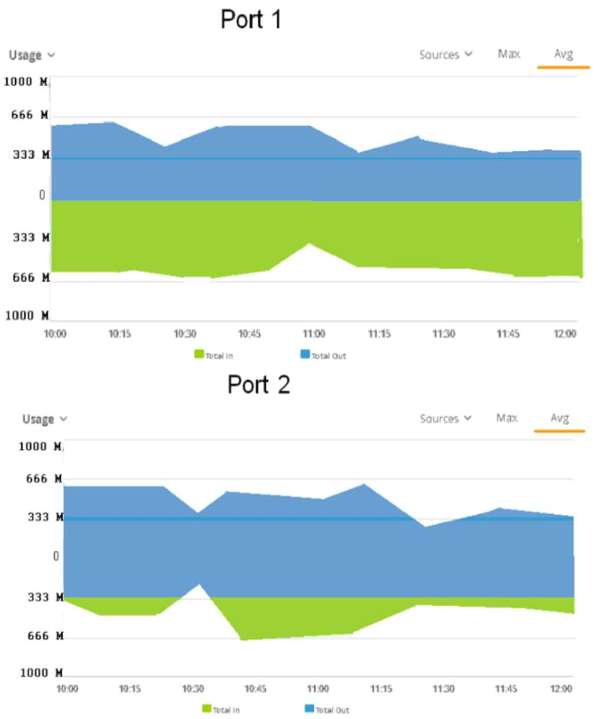

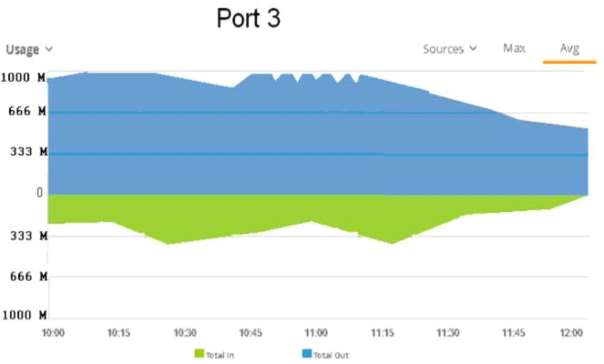

Refer to the exhibit.


Certification Exam Aruba Certified Design Expert Written Exam HP HP-HPE6-A80 3-4277463832




2




Certification Exam Aruba Certified Design Expert Written Exam HP HP-HPE6-A80 4-1415117439



A customer needs a wired network upgrade and has complained about performance issues. The
architect collected information about traffic now on several switch ports in different locations across
the network, and the results are shown in the exhibit. Each of these ports is a 1Gbps port.
What can the architect conclude?
Select the answer
1 correct answer
A.
All of the ports show serious congestion
B.
Port 1 shows periods of congestion; other ports are not congested.
C.
Port 3 snows periods of congestion; other ports are not congested.
D.
None of these ports show any periods of congestion

Quiz

9/10

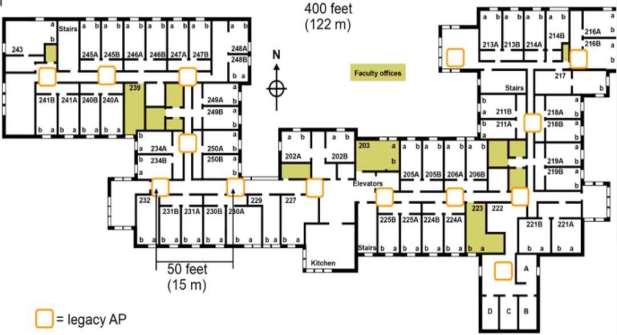

Refer to the exhibit.


2




Certification Exam Aruba Certified Design Expert Written Exam HP HP-HPE6-A80 5-3318729750



The exhibit shows the current AP deployment in a school. This customer indicates that the current
wireless performance is inadequate and w B02.11ax.
For the new' solution, what should the network architect recommend?
Select the answer
1 correct answer
A.
APs deployed in rooms with a density-based design
B.
APs deployed in similar locations, but with dual 5 GHz radios
C.
APS deployed in similar locations, but with higher gain antennas
D.
APs deployed in hallways with about twice the density

Quiz

10/10
What is one additional benefit trial Foundation Care gives beyond ire included warranty in Aruba
products?
Select the answer
1 correct answer
A.
Next Business Day Snipping
B.
unlimited 24x7 access to TAG and online support
C.
business hour prone support for hardware issues
D.
installation and getting started services
