Guide for HCIP-Datacom-Core Technology V1.0

Quiz HCIP-Datacom-Core Technology V1.0

Free Test
/ 10

Quiz

1/10

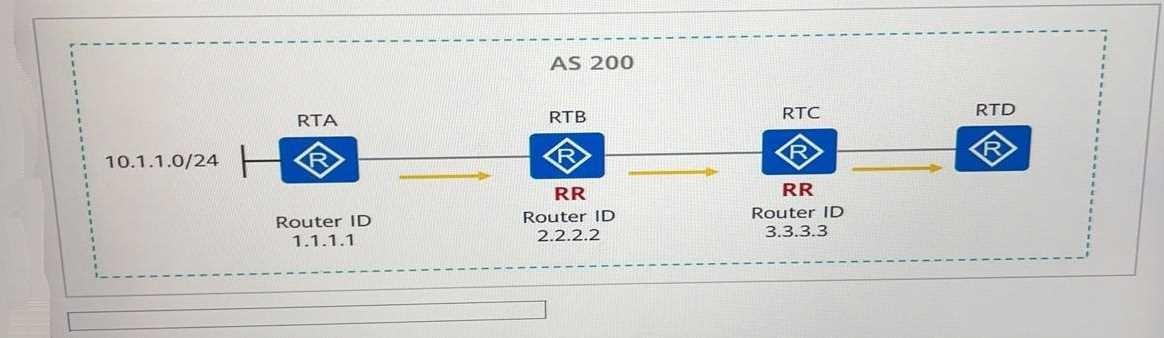

See the following figure. RTA, RTB, RTC, and RTD are in the same AS and establish IBGP peer relationships through direct links. RTB an RTC are route reflectors (RRs), RTA and RTC are the RR clients of RTB, and RTB and RTD are the RR clients of RTC. If RTA advertises the route 10.1.1.0/24 to the BGP process, the Originator ID of the BGP route received by RTD is -------------- --. Certification Exam HCIP-Datacom-Core Technology V1.0 Huawei Huawei-H12-821_V1.0 5-543589878
Select the answer
1 correct answer
Option I,N,O,R,D,E,R are correct.

Quiz

2/10
Which of the following statements about the forwarding plane of a switch is false?
Select the answer
1 correct answer
A.
Provides high-speed and non-blocking data channels.
B.
Can encapsulate and decapsulate packets.
C.
Can collect packet statistics.
D.
Consists of main control boards and interface boards.

Quiz

3/10
A monitoring plane usually comprises the monitoring units of main control boards and interface boards. This plane can monitor the system environment independently. Which of the following environment monitoring functions can be provided by the monitoring plane?
Select the answer
1 correct answer
A.
Voltage monitoring
B.
Temperature monitoring
C.
Fan control
D.
System power-on and power-off control

Quiz

4/10
Which of the following statement regarding the display ospf peer command output is true? Certification Exam HCIP-Datacom-Core Technology V1.0 Huawei Huawei-H12-821_V1.0 2-2674024165
Select the answer
1 correct answer
A.
Address: 10.1,1.1 Indicates that the local interface address is 10.1.1.1.
B.
Through negotiation during DD packet exchange, the local end becomes the slave.
C.
Router ID indicates that the local router ID Is 10.1.1.1.
D.
The DR address is 10.1.1.1

Quiz

5/10
Which of the following statements regarding different LSA types is false?
Select the answer
1 correct answer
A.
LS Request packets contain only LS Type, LS ID, and Advertising Router.
B.
LS Ack packets contain complete LSA information.
C.
DD packets contain only LSA summary information, including LS Type, LS ID, Advertising Router, and LS Sequence Number.
D.
LS Update packets contain complete LSA information.

Quiz

6/10
To prevent inter-area routing loops, OSPF does not allow advertising routing information between two non-backbone areas and allows sing routing information only within an area or between the backbone area and a non-backbone are a. Therefore, each ABR must be connected to the backbone area.
Select the answer
1 correct answer
A.
TRUE
B.
FALSE

Quiz

7/10
Which of the following statements regarding OSPF route summarization is false?
Select the answer
1 correct answer
A.
OSPF supports two route summarization modes: ABR summarization and ASBR summarization.
B.
Any router in OSPF can summarize routes.
C.
Route summarization is the process of summarizing routes with the same prefix into one route and then advertising only the summarized route to other areas.
D.
Route summarization can reduce routing information, decrease the routing table size, and improve router performance.

Quiz

8/10
Which of the following statements is false?
Select the answer
1 correct answer
A.
If the current DR fails, the current BDR automatically becomes a new DR, and a BDR will be elected again.
B.
A device with a higher router priority has a higher election priority.
C.
When a router with the highest router priority joins an OSPF network, this router will become the new DR.
D.
If two devices have the same router priority, the device with a larger router ID has a higher election priority.

Quiz

9/10
Which of the following statements regarding the LSA age field are true?
Select the answer
1 correct answer
A.
The unit of this field is seconds. In a LSDB, the LS age of a LSA increases with time.
B.
If the LS age of a LSA has reached the LSRefreshTime (30 minutes), any router can regenerate an instance of this LSA again.
C.
The unit of this field is seconds. In a LSDB, the LS age of a LSA decreases with time.
D.
If the LS age of a LSA has reached the LSRefreshTime (30 minutes), the originator of this LSA needs to regenerate an instance of this LSA again.

Quiz

10/10
In the OSPF protocol, inter-area route calculation involves only Router LSA, Network LSA, and Summary LSA.
Select the answer
1 correct answer
A.
TRUE
B.
FLASE
